Industrial Titanium Tubes & Pipes
Seamless and welded titanium tubes and pipes supplied for high-pressure, corrosive, and high-temperature industrial environments. Produced from premium titanium grades to ensure strict dimensional consistency and metallurgical soundness. Supplied with comprehensive Mill Test Reports (MTRs) meeting ASTM, ASME, and DIN standards.
-
![High Purity Titanium Metal]()

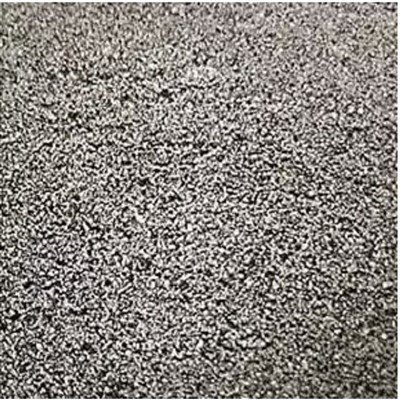

High Purity Titanium MetalHigh-purity titanium metal serves as a critical structural and functional raw material for extreme environments requiring high strength-to-weight ratios and exceptional corrosion resistance.view more -
![High Purity Titanium Sponge]()

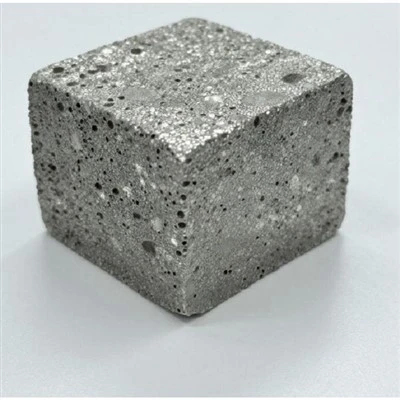

High Purity Titanium SpongeHigh Purity Titanium Sponge is the primary metallic feedstock produced via the Kroll process and vacuum-distilled to remove residual magnesium and magnesium chloride.view more -
![Titanium Metal Shot]()

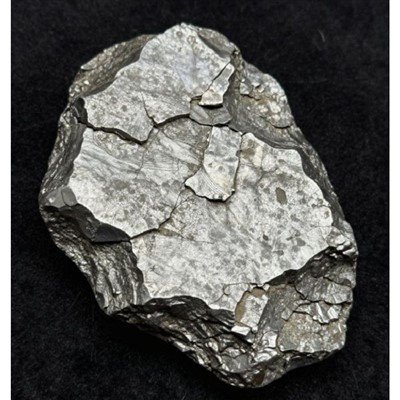

Titanium Metal ShotTitanium Metal Shot is processed from certified ASTM Grade 1 and Grade 2 industrial pure titanium stock.view more -
![Titanium Metal Powder]()
Titanium Metal PowderAustenitic stainless steel powder optimized for additive manufacturing, metal injection molding (MIM), and powder metallurgy.view more -
![Titanium Metal Granules]()
Titanium Metal GranulesIndustrial-grade and high-purity Titanium Metal Granules are produced via vacuum distillation, hydride-dehydride (HDH) processing, or rotary atomization. Engineered for precise metallurgical alloying, vacuum melting, and advanced...view more -
![Titanium Sponge]()
Titanium SpongeIndustrial-grade Titanium Sponge produced via the vacuum distillation Kroll process. Raw metallic titanium in porous, granular form, utilized primarily as the fundamental feedstock for vacuum arc remelting (VAR) into titanium ingots and...view more
Key Features
High resistance to chloride stress corrosion cracking and oxidizing acid media.
Excellent structural integrity at elevated service temperatures up to 300C to 400C.
Strict concentricity and wall thickness control for critical fluid transport systems.
100% Eddy Current or Ultrasonic tested to verify freedom from internal defects.
Available Grades: Grade 2 (Unalloyed), Grade 9 (Ti-3Al-2.5V), Grade 5 (Ti-6Al-4V), Grade 7.
Product Types: Seamless Tubes, Welded Pipes, Heat Exchanger U-Bend Tubes.
Standard Dimensions:
- Outer Diameter (OD): 6.0mm - 219mm.
- Wall Thickness (WT): 0.5mm - 15.0mm.
- Length: Up to 12,000mm random or cut-to-length.
Manufacturing Standards: ASTM B337, ASTM B338, ASTM B861, ASME SB338.
Tolerances & Processing: Precision cold-drawn or hot-rolled tolerances per ASTM specifications. Custom cutting, deburring, and bending services available upon engineering request.
Chemical Composition (Typical % for Grade 2 & Grade 9)
|
Grade |
Fe (Max) |
C (Max) |
N (Max) |
H (Max) |
O (Max) |
Al |
V |
Titanium |
|
Grade 2 |
0.30 |
0.08 |
0.03 |
0.015 |
0.25 |
- |
- |
Balance |
|
Grade 9 |
0.25 |
0.08 |
0.03 |
0.015 |
Heat Exchangers & Condensers: Shell-and-tube heat exchangers in seawater desalination and power plants.
Chemical Processing: Acid production lines, chlor-alkali piping systems, and corrosive fluid transport.
Oil & Gas / Offshore: Subsea hydraulic lines and corrosive wellhead equipment.
Aerospace: Aircraft hydraulic and fuel lines (Grade 9 / Ti-3Al-2.5V).
Non-Destructive Testing (NDT): 100% hydrostatic testing, pneumatic testing, or eddy current / ultrasonic testing performed per ASTM test requirements.
Dimensional Inspection: Laser outer diameter and wall thickness verification across the full tube length.
Mechanical Validation: Flaring, flattening, and tensile tests executed on representative samples per production lot.
Certifications: Manufactured under ISO 9001 quality management systems; materials traced via unique heat numbers linked to EN 10204 3.1 MTRs.
Packaging & Shipping
Packaging
Ends capped with plastic protectors, bundled securely, and packed in sturdy fumigated wooden export boxes with internal padding to prevent transit scratching.
Labeling
Outer packaging and individual tubes marked with Specification, Grade, Heat Number, and Size.
Shipping
Secure containerized ocean freight or expedited air cargo handling.
Documentation
- Mill Test Reports (MTRs) per EN 10204 3.1.
- Non-Destructive Testing (NDT) inspection reports.
- Certificate of Conformance (CoC) and packing list.
MOQ & Lead Time
MOQ: 200 kg or 50 pieces per size/grade (stock dependent).
Lead Time:
- Stock items: 7 to 12 business days.
- Custom production / drawing-based fabrication: 35 to 50 business days.
FAQ
Request a Quote
Please provide your complete project specifications below to receive an accurate formal quotation within 24 hours:
Email: [email protected]
Required RFQ Details:
Material Grade (e.g., Grade 2, Grade 9)
Product Form (Seamless Tube, Welded Pipe, U-Bend)
Dimensions (Outer Diameter x Wall Thickness x Length)
Quantity (Meters, Pieces, or Total Weight)
Destination Port / Delivery Location
As one of the leading titanium metal manufacturers and suppliers in China, we warmly welcome you to buy high quality titanium metal at competitive price from our factory. Contact us for more details.
